QB1350 – 4 Disc Metal Surface Processing Machine
Wide Range of Applications: Enables sanding, deburring, edge rounding, and polishing on stainless steel, aluminum, black sheet, and other metal surfaces.
Pre-Paint Surface Preparation: Roughens the surfaces of aluminum and black sheet panels before painting to ensure strong adhesion and high-quality coating.
Interchangeable Disc System:
- Compact Disc (removal of burrs and welding spatters),
- Eccentric Disc (for non-directional surfaces),
- Combi Disc (for edge rounding),
- Flex Disc (edge rounding for 3D parts),
- Wire Disc (oxide removal),
- Heavy Deburring Disc (for thick burr removal).
Vacuum System: Provides stability for thin materials (2 mm and below), enabling precise sanding.
Robust Frame: Heavy-duty steel frame minimizes vibration for accurate and efficient operation.
Powerful Motors: High-performance motors ensure uninterrupted operation and an efficient production process.
- Description
- Technical Details
Description
QB1350 – 4-Disc Metal Surface Processing Machine
- Application Areas:
- QB1350 enables multiple operations such as sanding, deburring, edge rounding, surface polishing, and non-directional finishing on metal surfaces using a single machine.
- Thanks to its interchangeable 4-disc structure, it easily adapts to various processing needs.
- It delivers precise and consistent results on different metal surfaces like stainless steel, aluminum, and black sheet, providing high efficiency both on production lines and in workshops.
- Prepares aluminum and black sheet surfaces for painting by roughening them, ensuring excellent adhesion and high-quality coating results.
- Available Discs:
- Compact Disc: Removes heavy burrs and welding spatters from stainless steel surfaces.
- Scotch Disc (Scotch-Brite): Suitable for light deburring on laser-cut aluminum or steel parts.
- Eccentric Disc: Used to achieve non-directional surface finishes.
- Combi Disc: The most preferred disc for edge rounding on all material types.
- Flex Disc: Ideal for edge rounding on foiled, zinc-coated, stamped, or deep-drawn 3D parts.
- Wire Disc: Equipped with wire brushes for removing oxide layers on laser-cut steel parts.
- Heavy Deburring Disc: Effectively removes thick slag and heavy burrs before further processing.
- Vacuum System:
- Ensures stable holding and prevents slipping for thin parts (2 mm or less).
- Guarantees smooth feeding of the workpiece, resulting in uniform sanding outcomes.
- Chassis and Structural Durability:
- Operates with minimal vibration thanks to its heavy-duty steel construction.
- Reduced vibration provides an advantage in high-precision operations.

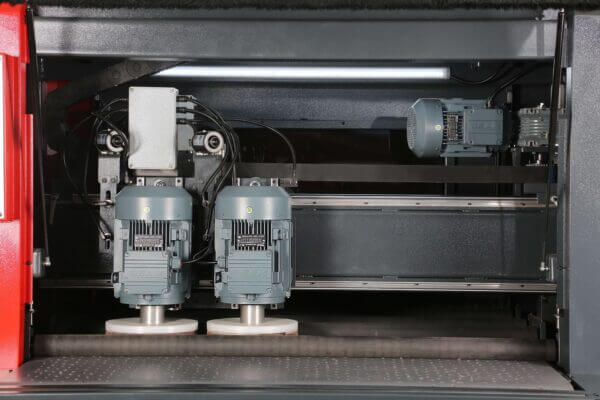

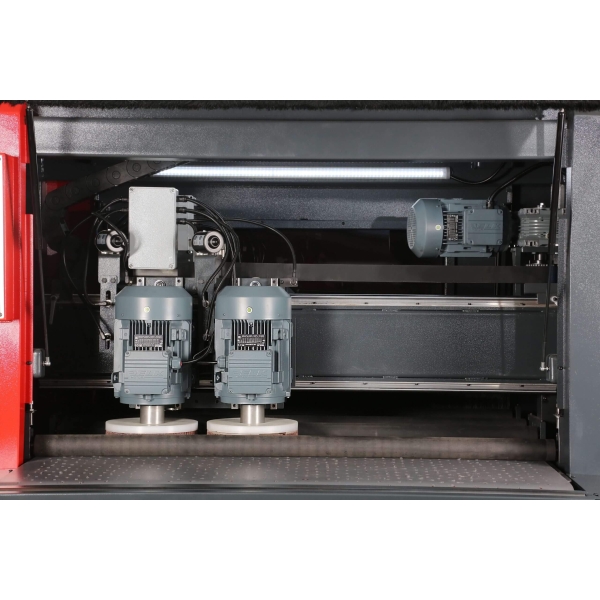

- Motor Power and Performance:
- High-powered motors ensure uninterrupted operation even during extended and demanding workloads.
- Delivers stable and powerful sanding performance.
- Operational Efficiency:
- Features adjustable feed speed and pressure system for various material types and thicknesses.
- Offers precise height adjustment for surface processing tailored to each material type.
| Machine working witdh | mm | 1350 |
| Total power | kW | 17 |
| Disc rotation speed | rpm | Speed adjustable |
| Feeding speed | m/min | 0,5 – 6 (Speed adjustable) |
| Discs dimensions | mm | (4x) Ø250 |
| Feeding system | Manuel | |
| Machine dimensions | mm | 2000x2000x2100 |

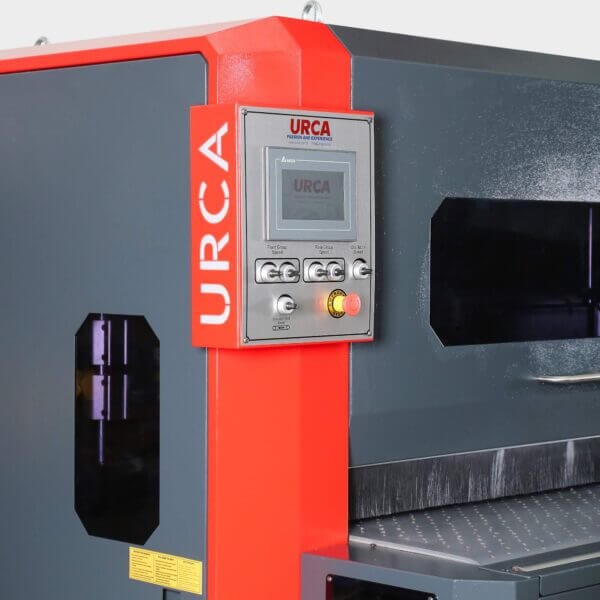

| Machine control | Touch panel | |
| Electrical panel | Siemens-Schneider | |
| Motor driver | Mitsubishi | |
| Weight | kg | 1750 |
| Dust collector hoods | mm | Ø200 |
| Work safety precautions | Include | |
| Motor protection units | Include | |
