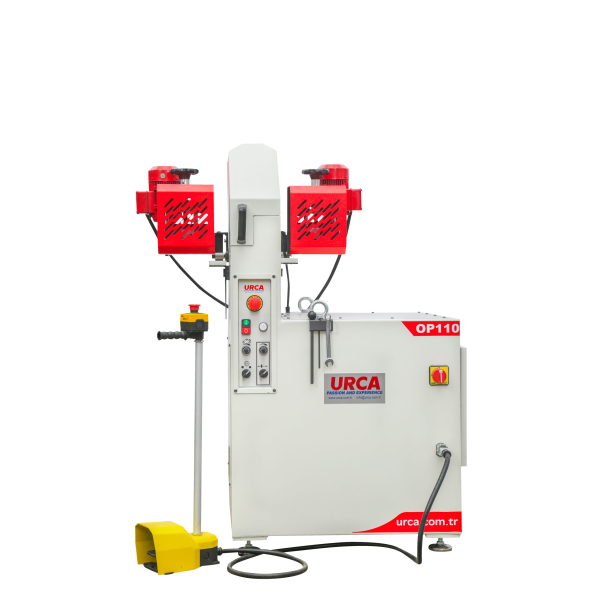

Orbital Pipe Polishing Machine OP110 | Straight & Bent Tubes
The OP110 orbital pipe polishing machine is designed for grinding, polishing and satin finishing of straight or bent tubes with round, oval or elliptical sections made of stainless steel, steel, aluminum, brass, bronze and other metals. It ensures high productivity and consistent surface finishing.
• Suitable for pipes up to 114 mm diameter
• Dry working system
• Adjustable grinding pressure for high material removal
• Variable speed abrasive belt
• Manual or automatic feed system
• Self-centering feed with inverter-controlled adjustable speed for straight and tapered parts
• Abrasive belt size: 50 × 940 mm
Options
• Wet working system
• Table roller
- Description
- Technical Details
Description
The OP110 Orbital Pipe Polishing Machine is designed for high-quality grinding, polishing and satin finishing of metal tubes. The machine can process straight and bent pipes with round, oval or elliptical sections.
With a working range from 5 mm up to 114 mm pipe diameter, the OP110 offers high flexibility for different tube sizes used in industrial production.
Thanks to its orbital polishing system and self-centering feed mechanism, the machine provides uniform surface finishing and high productivity. It is suitable for polishing pipes made of stainless steel, carbon steel, aluminum, brass, bronze and copper.
The machine is widely used in industries such as furniture manufacturing, stainless steel fabrication, architectural metalwork, automotive components and industrial tube production, where consistent surface quality and efficiency are required.
| Machine working width | mm | Ø10 – Ø114 |
| Abrasive belts motor power | kW | 3 |
| Abrasive belts cutting speed | m/s | Speed adjustable |
| Wheel motor power | kW | 1,5 |
| Abrasive belt dimensions | mm | (2x) 940*50 |
| Feed system | Manual | |
| Machine dimensions | mm | 800x1100x1300 |

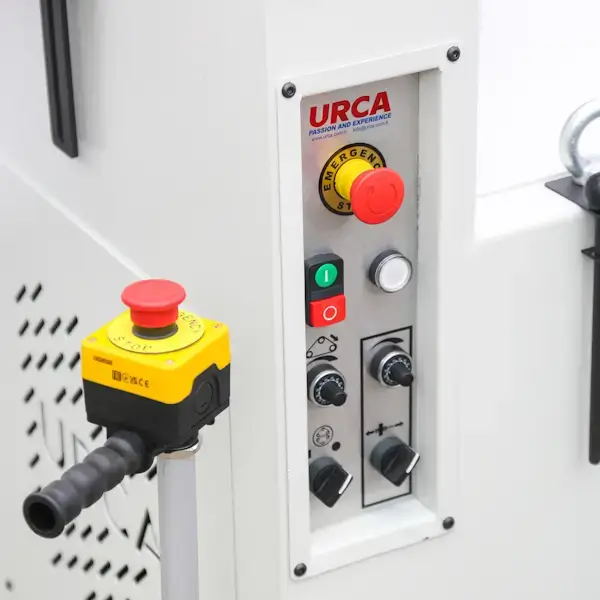

| Machine control | Analog Panel | |
| Control panel | Siemens-Schneider | |
| Motor inverter | Mitsubishi | |
| Weight | kg | 270 |
| Dust extraction connection | mm | Ø76 |
| Safety cover | Include | |
| Motor safety unit | Include | |
